The GIGABYTE Radeon RX 6500 XT EAGLE 4G (GV-R65XTEAGLE-4GD) is a compact, dual-fan entry-level graphics card that makes most sense as a first dedicated GPU for a budget desktop or as a replacement for a dead older card. Its strengths are a small 192 mm body, a single 6-pin power connector and a 400W recommended power supply. Its weaknesses are just as clear: only 4GB of memory on a 64-bit bus, two display outputs, and no hardware video encoding according to AMD.
This review is based on GIGABYTE’s official specification page, AMD’s Radeon RX 6500 XT specification page and the Amazon.in listing, all checked on 17 October 2026. It is not a hands-on test, and we do not quote frame rates or benchmark numbers.
The affiliate link below points to the exact GV-R65XTEAGLE-4GD, the 4GB EAGLE model. Other RX 6500 XT cards from GIGABYTE or other brands, including versions with more memory, are separate listings.
Quick verdict
- Best for: budget desktop builds, small cabinets and older PCs that need a modern, efficient display card with light gaming ability
- Key strengths: short 192 mm card, one 6-pin connector, 400W recommended PSU, HDMI 2.1 and DisplayPort 1.4a, 3-year warranty per the listing
- Key limitations: 4GB GDDR6 on a 64-bit bus, only two outputs, no H.264 or HEVC hardware encoding and no AV1 decode per AMD
- Skip if: you stream or record gameplay, play recent demanding games at high settings, or run more than two monitors

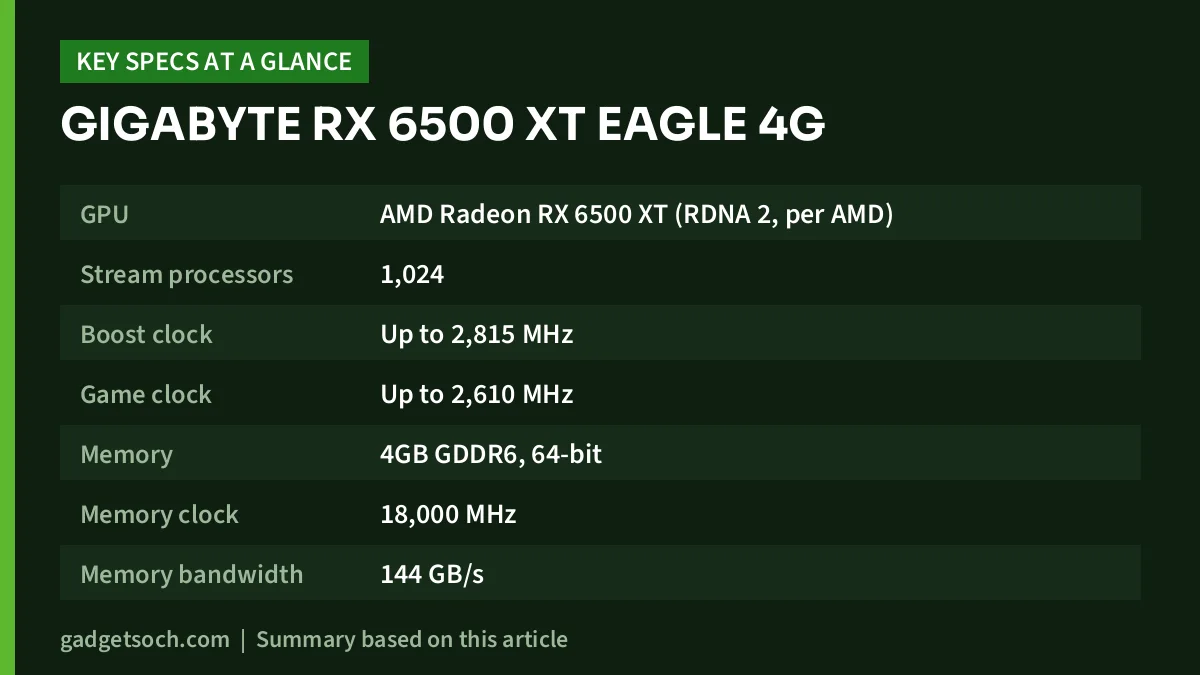

Specifications
| Specification | GV-R65XTEAGLE-4GD (official GIGABYTE page unless noted) |
|---|---|
| GPU | AMD Radeon RX 6500 XT (RDNA 2, per AMD) |
| Stream processors | 1,024 |
| Boost clock | Up to 2,815 MHz |
| Game clock | Up to 2,610 MHz |
| Memory | 4GB GDDR6, 64-bit |
| Memory clock | 18,000 MHz |
| Memory bandwidth | 144 GB/s |
| Infinity Cache | 16MB (AMD spec page) |
| Card bus | PCI-E 4.0 (lane count not listed) |
| Outputs | 1 x DisplayPort 1.4a, 1 x HDMI 2.1 |
| Max resolution | 7680 x 4320 |
| Multi-view | 2 displays |
| Card size | 192 x 117 x 38 mm |
| Power connector | 1 x 6-pin |
| Recommended PSU | 400W |
| Typical board power | 113W (AMD spec page, reference figure) |
| Warranty | 3 years (Amazon.in listing) |
Check the current price of the GIGABYTE RX 6500 XT EAGLE 4G on Amazon.in
Where the official specs and the Amazon.in listing differ
Most numbers match, but a few listing fields can mislead. The Amazon.in listing gives item dimensions of 32 x 13.9 cm, while GIGABYTE’s page lists the card at 192 x 117 x 38 mm. The larger listing figure is most likely the box size, so use GIGABYTE’s 192 mm length when checking cabinet clearance.
The listing also says “Graphics Description: Integrated”, and its title uses the phrase “integrated with 4GB GDDR6”. This is a dedicated graphics card that goes in a PCIe slot; the wording only means the memory is on the card. Finally, AMD’s own RX 6500 XT page shows a game frequency of 2,650 MHz and a maximum memory size of 8GB, while GIGABYTE’s EAGLE page shows a 2,610 MHz game clock and 4GB. The GIGABYTE figures describe this specific card.
Size, power and installation
At 192 mm long and 38 mm thick, this card fits a much wider range of cabinets than mid-range cards, including many compact micro-ATX cases. Check that your cabinet’s maximum GPU length exceeds 192 mm and that the slot below the main PCIe slot is clear enough for a card of roughly two-slot thickness.
Power needs are modest. GIGABYTE recommends a 400W power supply and the card uses one 6-pin PCIe power connector. AMD lists the reference typical board power at 113W. In practice, the connector matters more than the wattage label: many basic PSUs bundled with low-cost cabinets have no 6-pin PCIe cable, and some cheaper units cannot deliver their printed rating. If your PSU has no 6-pin lead, replace it with a branded unit rather than relying on Molex or SATA adapters.
The card bus is PCI-E 4.0, and PCI Express is backward compatible, so the card works in a PCIe 3.0 x16 slot. GIGABYTE’s page does not state how many PCIe lanes the card uses, and that matters on older PCIe 3.0 boards because a card with fewer lanes gets less bandwidth there. Check independent reviews that test PCIe 3.0 behaviour if your motherboard is older.
Memory: the 4GB question
The biggest limitation is memory. The card has 4GB GDDR6 on a 64-bit bus, rated at 144 GB/s by GIGABYTE. AMD adds 16MB of Infinity Cache, an on-chip cache that reduces how often the GPU needs to fetch from memory, and quotes an effective bandwidth of up to 232 GB/s for the RX 6500 XT.
Even so, 4GB is small for recent PC games, many of which recommend more video memory at medium or high texture settings. Running out of VRAM shows up as stutter and texture pop-in rather than a simple lower frame rate. Lowering texture quality is usually the first fix. For esports titles, older games and 1080p play at modest settings, 4GB is more workable, but if your game list leans towards new AAA releases, a card with 6GB to 10GB is the safer purchase.
Displays, video and features
Outputs are limited to one DisplayPort 1.4a and one HDMI 2.1, with support for two displays. Both are modern standards that can drive high-resolution and high-refresh monitors, but there is no DVI or VGA port, so an older monitor may need an active adapter. AMD lists FreeSync support, which reduces tearing on compatible monitors.
The most important hidden limitation is video encoding. AMD’s specification page lists no H.264 or HEVC encoding on the RX 6500 XT, and no AV1 decoding. H.264 and HEVC decoding are supported, so normal video playback is fine. However, if you plan to stream to YouTube or Twitch, record gameplay, or use the GPU to speed up video exports, the card cannot help with encoding and the work falls on your CPU.
On the software side, AMD lists FidelityFX Super Resolution (FSR), Radeon Super Resolution, Radeon Anti-Lag, Radeon Boost and Smart Access Memory, along with Windows 11, Windows 10 and Linux 64-bit support. Upscaling features such as FSR can help a card with limited memory and bandwidth hold playable frame rates in supported games.
Cooling
According to the Amazon.in listing, GIGABYTE’s WINDFORCE 2X cooler uses two alternate-spinning fans and graphene nano lubricant. Fans that spin in opposite directions are generally used to smooth the airflow between them. With a 113W reference board power and two fans, cooling demands are moderate; good cabinet airflow and periodic dust cleaning will matter more than the cooler design over the card’s life.
Pros and cons
- Pro: short 192 mm length suits compact cabinets
- Pro: one 6-pin connector and a 400W PSU recommendation
- Pro: HDMI 2.1 and DisplayPort 1.4a with FreeSync
- Pro: 3-year warranty according to the Amazon.in listing
- Con: 4GB on a 64-bit bus limits texture settings in newer games
- Con: no H.264 or HEVC encoding and no AV1 decoding, per AMD
- Con: only two display outputs, no legacy ports
- Con: PCIe lane count not stated on the official page
Who it suits, and who should look elsewhere
This card suits a buyer who needs a dedicated GPU for a desktop built around a processor without integrated graphics and wants light gaming on top. Our Intel Core i5-12400F review covers one such CPU that cannot output video on its own. It also suits small cabinets and modest power supplies where a larger card would not fit or could not be powered. If you are building on AMD’s AM4 platform, our ASUS Prime A520M-K review covers a budget board you might pair it with, including its limits.
Look elsewhere if you stream or record, because of the missing encoders; if you want high settings in new AAA games, because of the 4GB memory; or if you run three monitors.
Alternatives to compare
The following details come from each product’s Amazon.in listing, captured on 17 October 2026, so treat them as listing claims.
- ASUS Dual GeForce RTX 3050 6GB OC Edition: 6GB GDDR6, a 2-slot design and DVI, DisplayPort and HDMI outputs, with a 1,537 MHz OC-mode boost clock.
- MSI GeForce RTX 3050 Ventus 2X 6G OC: 6GB GDDR6 on a 96-bit bus, one DisplayPort 1.4a and two HDMI outputs, a 300W minimum system power and a 189 mm length.
- ASUS Dual Radeon RX 7600 EVO OC 8GB: 8GB GDDR6, one HDMI 2.1 and three DisplayPort 1.4a, a 2.5-slot design and a 2-year warranty listed.
- ASRock Intel Arc B570 Challenger 10GB OC: 10GB GDDR6 on a 160-bit bus, three DisplayPort 2.1 and one HDMI 2.1a, a single 8-pin connector and AV1 encoding listed.
Before you order
- Confirm the listing title and model code read GV-R65XTEAGLE-4GD, the 4GB EAGLE model.
- Measure for at least 192 mm of GPU length in your cabinet.
- Make sure your PSU is at least 400W, from a known brand, with a 6-pin PCIe power cable.
- Check your monitor connections: the card has only HDMI 2.1 and DisplayPort 1.4a.
- Update your motherboard BIOS and download the latest AMD driver after installation.
- Keep the invoice and box for the 3-year warranty stated on the listing, and confirm service terms with GIGABYTE India.
- The official accessory list is just a quick guide, so do not expect cables or adapters.
If those checks are fine, see the GIGABYTE GV-R65XTEAGLE-4GD on Amazon.in and confirm the variant before paying.
Frequently asked questions
How much power does the GIGABYTE RX 6500 XT EAGLE 4G need?
GIGABYTE recommends a 400W power supply and the card uses one 6-pin PCIe power connector. AMD lists the reference typical board power as 113W.
Can I use it for streaming or recording gameplay?
Not with hardware encoding. AMD’s specification page lists no H.264 or HEVC encoding for the RX 6500 XT, so streaming and recording would rely on your CPU.
Will it work in a PCIe 3.0 motherboard?
Yes, the PCI-E 4.0 card is backward compatible with PCIe 3.0 x16 slots. The official page does not list the lane count, so check reviews if older-board bandwidth concerns you.
Is 4GB of VRAM enough?
For esports and older games at modest settings, it can be. For recent AAA games, 4GB often forces lower texture settings, and a 6GB to 10GB card is the safer choice.
How long is the card?
GIGABYTE lists 192 x 117 x 38 mm. The 32 cm figure on the Amazon.in listing appears to be the packaging size.
Bottom line
The GIGABYTE RX 6500 XT EAGLE 4G is a small, easy-to-power card with modern outputs, which makes it a reasonable fit for compact budget builds and older PCs. The 4GB memory, two outputs and missing hardware encoders are real limits, so it is best for light and esports gaming rather than streaming or new AAA titles. If that matches your needs, check the current price of the GIGABYTE RX 6500 XT EAGLE 4G on Amazon.in.
