GIGABYTE RX 9060 XT Gaming OC 16G Review: 16GB Mid-Range Card, Specs and Trade-offs

The GIGABYTE Radeon RX 9060 XT Gaming OC 16G pairs 16GB of GDDR6 with a 450W recommended PSU and a single 8-pin connector. Here is what its official specs mean, where it falls short, and what to check before you order.

By Gadget Soch·19 Oct 2026·9 min read

The GIGABYTE Radeon RX 9060 XT Gaming OC 16G (model GV-R9060XTGAMING OC-16GD) is a factory-overclocked desktop graphics card built on AMD’s Radeon RX 9060 XT chip, with 16GB of GDDR6 memory, a PCIe 5.0 interface and a single 8-pin power connector. It suits Indian PC builders who want a mainstream gaming card with plenty of video memory and a modest power requirement, since GIGABYTE recommends only a 450W power supply.

Our short verdict: on paper, it looks like a balanced mid-range card for a new build. The 16GB of memory gives headroom that 8GB cards lack, GIGABYTE’s clocks sit well above AMD’s reference figures, and the cooler is packed with features. The trade-offs are a 128-bit memory bus, a 281 mm length that needs a cabinet check, and some confusing details on the Amazon.in listing.

How this article was put together: it is based on GIGABYTE’s official product and specification pages (checked on 17 October 2026) and the Amazon.in listing data captured the same day. We have not tested this card hands-on, and because we could not access independent benchmark data for this exact model while researching, we do not quote any frame rates, temperatures or noise figures.

Quick verdict

Best for: new or upgraded gaming PCs where 16GB of video memory and a 450W recommended PSU are a good fit
Skip if: your cabinet cannot fit a 281 mm card, or you only need a display output for office work
Key strengths: 16GB GDDR6, boost clock up to 3320 MHz (reference card 3130 MHz), PCIe 5.0, DisplayPort 2.1a and HDMI 2.1b outputs, one 8-pin connector
Key limitations: 128-bit memory bus, only three outputs, no performance data verified for this exact card, and the Amazon listing contains a part number mix-up

GIGABYTE RX 9060 XT Gaming OC 16G specifications

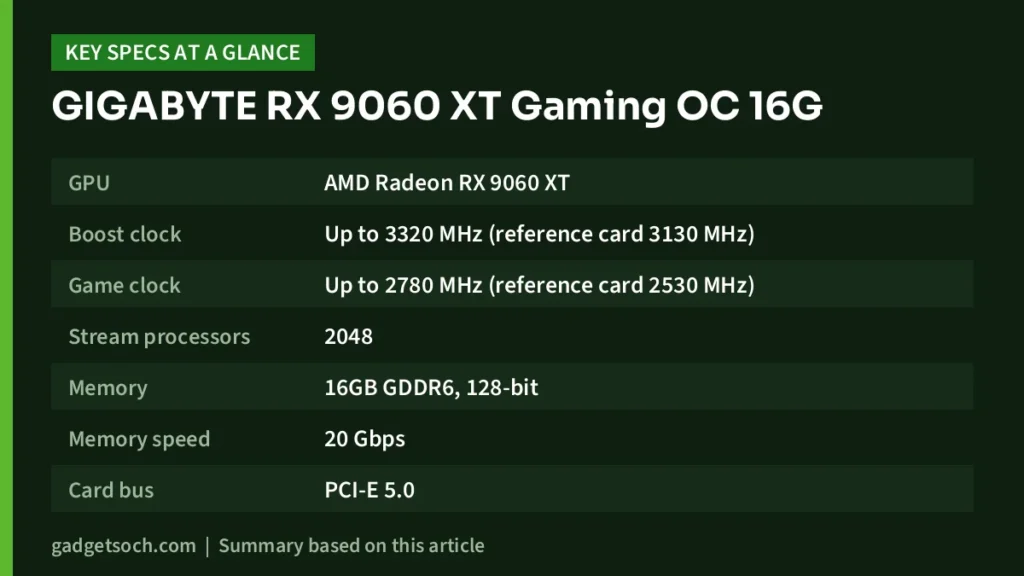

RX 9060 XT Gaming OC 16G key specs at a glance — RX 9060 XT Gaming OC 16G key specifications, summarised from the table in this review.

Specification	GIGABYTE RX 9060 XT Gaming OC 16G
GPU	AMD Radeon RX 9060 XT
Boost clock	Up to 3320 MHz (reference card 3130 MHz)
Game clock	Up to 2780 MHz (reference card 2530 MHz)
Stream processors	2048
Memory	16GB GDDR6, 128-bit
Memory speed	20 Gbps
Card bus	PCI-E 5.0
Outputs	2x DisplayPort 2.1a, 1x HDMI 2.1b
Maximum digital resolution	7680 x 4320
Multi-view (displays)	3
Card size	281 x 118 x 40 mm
Recommended PSU	450W
Power connector	1x 8-pin
DirectX / OpenGL	DirectX 12 API / OpenGL 4.6
In the box (official)	VGA manual
Warranty (Amazon.in listing)	3 year manufacturer

All specifications above come from GIGABYTE’s official specification page, except the warranty line, which is taken from the Amazon.in listing. The listing also gives a weight of 1100 grams, which GIGABYTE’s page does not state.

Check the current price of the GIGABYTE RX 9060 XT Gaming OC 16G on Amazon.in

What the 16GB of memory means for you

Video memory (VRAM) holds textures and other data the GPU needs right now. When a game wants more than the card has, data spills to slower system memory, causing stutter or forcing lower texture settings. Having 16GB rather than 8GB is less about higher average frame rates and more about consistency and longevity, as newer games, texture packs and mods tend to want more memory.

The catch is the 128-bit memory bus. GIGABYTE lists the memory at 20 Gbps, which is quick for GDDR6, but a narrower bus limits total bandwidth compared with cards that use wider buses. In practice, this class of card is usually aimed at 1080p and 1440p gaming rather than high-refresh 4K. If 4K at high settings is your main goal, look at a higher-tier card instead.

Clock speeds and the “OC” in the name

GIGABYTE’s Gaming OC cards ship with factory overclocks. For this model, the official page lists a boost clock of up to 3320 MHz against AMD’s reference figure of 3130 MHz, and a game clock of up to 2780 MHz against a reference of 2530 MHz. The game clock is closer to what you can expect during typical play, while the boost clock is a short-burst maximum that depends on temperature and load.

Factory overclocks usually add a small amount of performance over a reference-clocked card, not a dramatic jump. The bigger practical benefit is often the cooler, which helps the chip hold its clocks without getting loud. The Amazon.in listing quotes a GPU clock of 2700 MHz, which matches neither of GIGABYTE’s figures, so treat the official page as the reference.

Cooling, build and lighting

GIGABYTE’s WINDFORCE cooling system on this card combines several ideas, according to the official product page:

Hawk fans with eagle-wing-inspired blades, which GIGABYTE claims raise air pressure by up to 53.6% and air volume by 12.5%
Alternate spinning, where neighbouring fans turn in opposite directions to reduce turbulence
3D Active Fan semi-passive mode, so the fans can stay off under light load or low-power games
Graphene nano lubricant in the sleeve-bearing fans, which GIGABYTE says extends fan life by 2.1 times
Server-grade thermal gel on the VRAM and MOSFETs, which GIGABYTE says stays in place better than thermal pads
Copper plate and composite copper heat pipes, with the plate in direct contact with the GPU
Screen cooling, an extended heatsink that lets air pass straight through

Why it matters: the semi-passive mode means silence while you browse or work, and cooling the memory and power components as well as the GPU helps the whole board run within limits.

The card also has a reinforced metal backplate that GIGABYTE says is fastened to the I/O bracket for rigidity, RGB lighting with 16.7 million colours controlled through GIGABYTE Control Center (GCC), a power indicator light that flashes if there is a power supply problem, and “Ultra Durable” components such as metal chokes and low-ESR solid capacitors. GIGABYTE’s product page does not mention a dual-BIOS switch, so do not count on one.

Power, size and compatibility

GIGABYTE recommends a 450W power supply and the card uses a single 8-pin PCIe power connector. Most decent 450W-plus units from known brands include at least one 8-pin PCIe cable, but check your PSU’s label and cables. Avoid using adapters from SATA or Molex connectors.

At 281 x 118 x 40 mm, the card is long. Compact micro-ATX and mini-ITX cases often list a maximum GPU length below that, and front radiators or drive cages can eat into the space. Look up your cabinet’s “maximum GPU length” in its manual before ordering. The 40 mm thickness means it occupies roughly two expansion slots.

The card uses PCIe 5.0 but also works in PCIe 4.0 and 3.0 x16 slots, because PCIe is backward compatible. The link then runs at the slot’s lower speed, and the impact varies by game, so check independent reviews that test older PCIe generations if you have an older platform. Our ASUS Prime A520M-K review explains the limits of budget A520 boards.

GIGABYTE’s footnotes add that AMD Smart Access Memory needs a compatible Ryzen processor and an AMD 500 Series or later motherboard with current BIOS, and that FSR upscaling works only in games where developers have integrated it.

Display outputs

GIGABYTE lists two DisplayPort 2.1a ports and one HDMI 2.1b port, with up to three displays at once and a maximum digital resolution of 7680 x 4320. Typically, that means a gaming monitor on DisplayPort and a TV or second screen on HDMI. There is no DVI or VGA, so VGA-only monitors need an active adapter. The Amazon.in listing gives a maximum resolution of 3840 x 2160, which disagrees with GIGABYTE’s figure, so trust the official page.

Who should buy it, and who should skip it

Who should buy the RX 9060 XT Gaming OC 16G — Who the RX 9060 XT Gaming OC 16G suits, summarised from this review.

Buy it if you are building or upgrading a desktop for 1080p or 1440p gaming, want 16GB of memory for newer and future games, and prefer a card that runs on a 450W recommended PSU with one 8-pin connector. It is also a sensible fit for a CPU without integrated graphics, such as the chip in our Intel Core i5-12400F review, which needs a dedicated card to show any picture at all.

Skip it if your cabinet is too short for a 281 mm card, you mainly want high-settings 4K gaming, you need four or more outputs, or you only need a basic display adapter for office work.

Alternatives worth comparing

GIGABYTE Radeon RX 7600 Gaming OC 8G: an older Radeon RX 7000 Series card with 8GB GDDR6 on a 128-bit bus, 18 Gbps memory, PCIe 4.0, three 80mm fans and a 550W recommended PSU, according to GIGABYTE. Consider it only if 8GB is enough for the games you play.
MSI GeForce RTX 4070 Ti Gaming X Trio 12G: a higher-tier NVIDIA card with 12GB of memory, aimed at buyers with a bigger budget who want a higher-tier card. Our separate review covers its size and requirements.
An RX 9060 XT with a different cooler: other board partners and other GIGABYTE lines use the same Radeon RX 9060 XT chip with different coolers, lengths and clocks. If space is tight, compare official card lengths before choosing.

What to check before you order

RX 9060 XT Gaming OC 16G buying checklist — What to check before you buy the RX 9060 XT Gaming OC 16G.

Variant: the affiliate link below points to the GV-R9060XTGAMING OC-16GD with 16GB GDDR6. Confirm the model number and memory size in the listing title before paying.
Part number confusion: the Amazon.in listing’s technical details show a “Manufacturer Part Number” of GV-R9070XTGAMING-16GD, which is a different (RX 9070 XT) model name, while the model name and model number fields say GV-R9060XTGAMING OC-16GD. This looks like a listing error, but check the product box label on delivery.
Box contents: the listing says GPU and manual, and GIGABYTE’s page lists a VGA manual. Do not expect cables or a support bracket.
Warranty: the listing states a 3 year manufacturer warranty and names GIGABYTE Technology (India) Pvt Ltd, Mumbai, as manufacturer contact. Keep the invoice. GIGABYTE says crypto mining on this card voids the warranty.
Power supply: confirm a 450W or higher unit with a native 8-pin PCIe cable.
Cabinet clearance: confirm at least 281 mm of GPU length and two free slots.

See the GIGABYTE RX 9060 XT Gaming OC 16G (GV-R9060XTGAMING OC-16GD) on Amazon.in

Frequently asked questions

How much VRAM does the GIGABYTE RX 9060 XT Gaming OC 16G have?

It has 16GB of GDDR6 memory on a 128-bit bus at 20 Gbps, according to GIGABYTE’s official specification page.

What power supply do I need for the RX 9060 XT Gaming OC 16G?

GIGABYTE recommends a 450W power supply, and the card needs one 8-pin PCIe power connector. A quality unit from a known brand is more important than a bigger wattage number.

How long is the GIGABYTE RX 9060 XT Gaming OC 16G?

GIGABYTE lists the card at 281 mm long, 118 mm wide and 40 mm thick. Check your cabinet’s maximum GPU length before buying.

Does the card come with a warranty in India?

The Amazon.in listing states a 3 year manufacturer warranty, and lists GIGABYTE Technology (India) Pvt Ltd in Mumbai as the manufacturer contact. Confirm the warranty terms on the listing and keep your invoice.

Final word

The GIGABYTE Radeon RX 9060 XT Gaming OC 16G looks well-rounded on paper: 16GB of memory, generous factory clocks, a feature-rich WINDFORCE cooler and an easy 450W, single 8-pin requirement. Keep the 128-bit bus and three outputs in mind, and double-check the part number on delivery. If your cabinet fits a 281 mm card, it deserves a place on your shortlist.
