The Geonix Trot R1 Mini UPS (model GXRUPS12) is a small battery backup that keeps a 12 V Wi-Fi router, modem, CCTV camera or set-top box running when the mains power goes off. According to the Amazon.in listing, it uses three 1800 mAh lithium-ion cells, supplies 12 V at up to 2 A through a single output, and is rated for “up to 4 hours” of backup. If your router runs on a 12 V adapter rated at 2 A or less, it is a simple way to ride out short power cuts without losing your connection.
The short verdict: the Trot R1 suits homes and small shops with one standard 12 V router and power cuts that usually last an hour or two. It is the wrong choice for Jio AirFiber or Airtel Xstream AirFiber kits, routers that need more than 2 A, or anyone who wants to back up two devices (for example an ONT and a separate router) from one box.
This article is based on the Amazon.in listing (captured 17 October 2026), official manufacturer pages and published coverage, not hands-on testing. Geonix’s website showed no Trot R1 product page when we checked on 17 October 2026, so the specifications below are the listing’s claims.
Quick verdict
- Best for: one 12 V Wi-Fi router, broadband modem, ONT, CCTV camera or set-top box that draws up to 2 A
- Skip if: you use Jio AirFiber or Airtel Xstream AirFiber, your adapter is rated above 2 A or at a voltage other than 12 V, or you need two outputs
- Key strengths (listing claims): 12 V/2 A output, 3 x 1800 mAh lithium-ion cells, slim wall-mountable body, fire-retardant ABS enclosure, 1-year manufacturer warranty, made in India
- Key limitations: a single output, no official Geonix spec page for this model, conflicting runtime figures on the listing (4 hours in the title, 8 hours in one technical field), box contents not spelled out

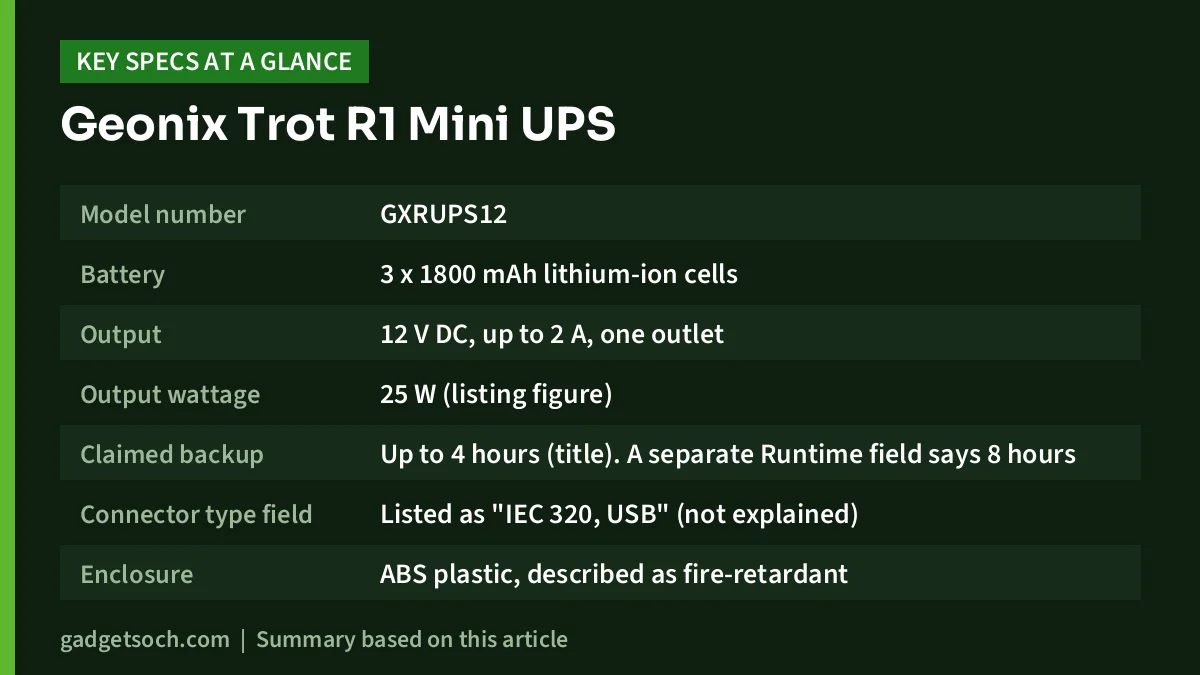

Key specifications
| Specification | Geonix Trot R1 (as stated on the Amazon.in listing) |
|---|---|
| Model number | GXRUPS12 |
| Battery | 3 x 1800 mAh lithium-ion cells |
| Output | 12 V DC, up to 2 A, one outlet |
| Output wattage | 25 W (listing figure) |
| Claimed backup | Up to 4 hours (title). A separate Runtime field says 8 hours |
| Connector type field | Listed as “IEC 320, USB” (not explained) |
| Enclosure | ABS plastic, described as fire-retardant |
| Mounting | Wall mountable |
| Dimensions | 30 x 126 x 184 mm |
| Weight | 312 g |
| Colour of this listing | Gray |
| Warranty | 1 year, manufacturer |
| Country of origin | India |
| Manufacturer | Geonix International Private Limited, New Delhi |
Specifications checked 17 October 2026. Since 12 V x 2 A is 24 W, treat the listing’s 25 W figure as a rounded rating, not extra headroom.
Check the current price of the Geonix Trot R1 Mini UPS (Gray) on Amazon.in
What a mini UPS does for your router
A router mini UPS is a DC battery pack that sits between the power socket and your router. While mains power is present it keeps its cells charged and passes power through to the router. When the supply drops, the battery takes over and keeps feeding 12 V DC, so the router does not reboot and your Wi-Fi network stays up. Unlike a computer UPS, it does not convert battery power back to 230 V AC, which is why it can be this small and quiet.
One point many buyers miss: a mini UPS only powers your equipment. If your provider’s equipment in the building or street also loses power, the router stays on but the internet can still drop. Ask neighbours or your provider how the line behaves during outages.
Battery and backup time: what “up to 4 hours” means
The listing says the Trot R1 contains three 1800 mAh lithium-ion cells. It does not state the cell voltage or how the cells are wired. Lithium-ion cells usually have a nominal voltage of about 3.6 to 3.7 V, so if that applies here, the pack holds roughly 20 Wh of energy. That is our estimate from the listed figures, not a Geonix specification.
Real backup time depends mostly on how much power your router draws. A rough rule is: usable battery energy divided by device power. Some energy is lost in the circuit that steps the battery voltage to a steady 12 V, so assume perhaps 80 to 90 percent of the pack is usable. As a rough illustration only (not a test result), with about 17 Wh usable:
- A small router drawing around 4 W could run for about four hours
- A dual-band router drawing around 6 W would land nearer three hours
- A busy Wi-Fi 6 router or a router plus attached accessories drawing 10 W would last under two hours
That lines up with the “up to 4 hours” claim in the listing title being a best case for a light load. The listing’s separate “Runtime: 8 hours” field conflicts with the title, and we found no official source that explains it, so plan around four hours at most. Lithium-ion cells also lose capacity with age and heat, so backup will shrink over time.
Output and compatibility: check your adapter first
The key number is the output: 12 V at up to 2 A. Before ordering, read the small print on your router’s adapter, which will say something like “Output: 12V 1A”.
- 12 V and 2 A or less: matches the Trot R1’s rated output
- 12 V at 2.5 A or 3 A: the router may work at idle but could shut down under load, so pick a higher-current model
- 9 V, 5 V or 15 V and above: the listing only states a 12 V output, so do not use it unless Geonix confirms otherwise
Next, check the plug. Most routers use a round barrel connector, often 5.5 x 2.1 mm, but not all. The listing’s “Connector type” field reads “IEC 320, USB”, which does not clearly describe the router-side plug, and the listing data we read does not list box contents. Look at the listing images and the questions section, or ask the seller, to confirm which DC cable comes in the box.
The listing also states only one outlet. Many fibre connections in India use a separate ONT (the box the fibre goes into) and a Wi-Fi router. If both need power, one Trot R1 cannot keep the connection alive on its own.
Finally, the listing lists Wi-Fi routers, CCTV cameras, set-top boxes, cordless phones and modems as compatible devices. It does not mention Jio AirFiber or Airtel Xstream AirFiber, which use their own power arrangements. AirFiber users should look at a model made for those kits, such as Oakter’s Mini UPS for AirFiber.
Design, build and installation
The listed dimensions of 30 x 126 x 184 mm describe a slim panel rather than a brick, and the listing says the unit is wall mountable. That suits homes where the router sits on a wall shelf near the switchboard, and the listed 312 g weight is easy to hang. The enclosure is described as fire-retardant ABS plastic, a sensible choice for a box of lithium cells that stays plugged in all day, though the listing names no safety certification.
Follow the Trot R1’s printed manual, because input arrangements differ between brands. In general:
- Switch off and unplug the router
- Connect the mini UPS to mains power as the manual describes and let it charge fully before relying on it
- Connect the UPS’s 12 V output to the router’s power socket with the correct DC cable
- Switch on and confirm the router boots normally
- Test it once by switching off the wall socket for a minute while you watch the router lights
Place it where air can circulate, away from sunlight, the kitchen or an inverter battery. Heat is the main enemy of lithium-ion cells.
Who should buy it, and who should skip it
Buy it if you have one standard 12 V router, modem, CCTV camera or set-top box drawing 2 A or less, you face short, frequent power cuts, and you want something compact that can hang on the wall.
Skip it if you use Jio AirFiber or Airtel Xstream AirFiber, your router needs more than 2 A, your ONT and router are separate boxes that both need backup, or you regularly face outages longer than three to four hours. In those cases a higher-capacity or multi-output unit, or a home inverter, is a better plan.
Alternatives worth comparing
- Geonix Trot R7: the Trot model that Geonix does show on its own website, described there as a mini UPS power bank for Wi-Fi routers with 2 x 2000 mAh batteries and backup of up to 6 hours
- Ambrane CyberVolt: Ambrane’s router UPS, which its official page describes as a 6000 mAh unit with up to 5 hours of backup, LED status indicators and protection against overcharging, overheating and short circuits
- Oakter Mini UPS Pro: according to MySmartPrice’s July 2025 roundup, a 4000 mAh unit with a 12 V/3 A output, built for regular routers rather than AirFiber, which helps if your router needs more than 2 A
Before you order: a quick checklist
- Confirm the variant on the listing: Geonix Trot R1, model GXRUPS12, Gray, 3 x 1800 mAh, 12 V/2 A output
- Read your router adapter label and make sure it says 12 V and 2 A or less
- Check the listing images or ask the seller which DC cable or tips are included
- Count your devices: one output means one router, modem, camera or set-top box
- Keep the invoice. The listing states a 1-year manufacturer warranty, and the manufacturer contact listed is care@geonix.in
- After delivery, charge it fully and run a short outage test before you depend on it
See the Geonix Trot R1 Mini UPS (Gray, GXRUPS12) on Amazon.in
If you are setting up a home office around a reliable connection, our work from home desk setup guide covers the rest of the desk.
Frequently asked questions
How long will the Geonix Trot R1 run my Wi-Fi router?
The listing title claims up to 4 hours. Actual time depends on your router’s power draw. Based on the listed 3 x 1800 mAh cells, a light router may approach that figure, while a busy dual-band or Wi-Fi 6 router will run for less. One technical field on the listing says 8 hours, which conflicts with the title, so do not plan around that number.
Will the Trot R1 work with Jio AirFiber?
The listing does not mention Jio AirFiber or Airtel Xstream AirFiber, so AirFiber users should choose a unit designed for those kits.
Can I power my ONT and router together?
Not from one unit. The listing states a single outlet. If your fibre connection has a separate ONT and router, you need one backup for each, or a model with two outputs.
Does the Geonix Trot R1 have a warranty in India?
The Amazon.in listing states a 1-year manufacturer warranty. Keep your invoice and contact Geonix through the details on the listing (care@geonix.in) for warranty support.
Final thoughts
On paper, the Geonix Trot R1 covers the most common home setup: one 12 V router and short power cuts, in a slim wall-mountable body. Its weak points are a single output, a backup claim that only holds for light loads, and no official Geonix product page to confirm the listing. If your adapter matches and one device is all you need to keep running, it is worth a look.
Check the current price of the Geonix Trot R1 Mini UPS on Amazon.in
Related reading on GadgetSoch: Lapcare Cube IV Mini UPS Review: 4000mAh 12V Router Backup, Explained and Amazon Basics 4-in-1 USB C Hub Review: One USB 3.0 and Three USB 2.0 Ports Explained.
